Product Details:
|
| Material: | Metal Zinc Alloy | Color: | Gold Silver Or Bronze |
|---|---|---|---|
| Spec: | 96/128mm | ||
| High Light: | Furniture Knobs And Pulls,Furniture Pulls And Handles |
||
Brand: Leya
Product Number: 6012
Type: Simple style
Usage: Cabinet,drawer, dresser kitchen or other furniture hardware use.
Color: Gold Silver Bronze and others
Surface :Nickel plated/Satin Nickel/Gold
(Special color negotiable)
Central distance: 64 / 96 / 128 mm as standard
Weight: 30-92g (for your reference)
Good quality and reasonable price.
Manufactured by : Wenzhou Leya Metal Hardware Co.,Ltd
The subsidiary of Sumer International (Beijing) Trading Co.,Ltd
Customized design welcome!

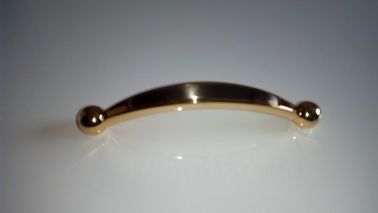

Gold handle 6012

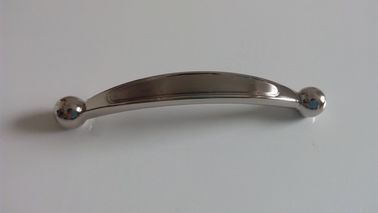

Silver handle 6012

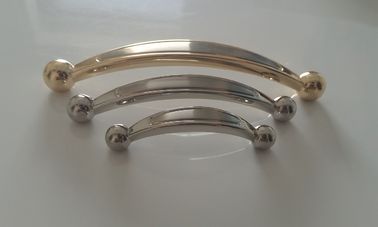

side look of different size 6012 metal furniture handle

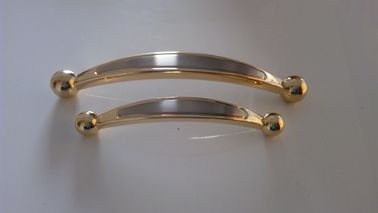

apperance of metal cabinet handle 6012
Side view
Shiny surface like a mirrow
More info:
amak 3
Zamak 3 is the de facto standard for the zamak series of zinc alloys; all other zinc alloys are compared to this. Zamak 3 has the base composition for the zamak alloys (96% zinc, 4% aluminium). It has excellent castability and long term dimensional stability. More than 70% of all North American zinc die castings are made from zamak 3.
Zamak 3 composition per standard
| Alloying elements | Impurities | |||||||||||
| Standard | Limit | Al | Cu† | Mg | Pb | Cd | Sn | Fe | Ni | Si | In | Tl |
| ASTM B240 (Ingot) | min | 3.9 | - | 0.025 | - | - | - | - | - | - | - | - |
| max | 4.3 | 0.1 | 0.05 | 0.004 | 0.003 | 0.002 | 0.075 | - | - | - | - | |
| ASTM B86 (Cast) | min | 3.5 | - | 0.025 | - | - | - | - | - | - | - | - |
| max | 4.3 | 0.25 | 0.05 | 0.005 | 0.004 | 0.003 | 0.1 | - | - | - | - | |
| EN1774 (Ingot) | min | 3.8 | - | 0.035 | - | - | - | - | - | - | - | - |
| max | 4.2 | 0.03 | 0.06 | 0.003 | 0.003 | 0.001 | 0.02 | 0.001 | 0.02 | - | - | |
| EN12844 (Cast) | min | 3.7 | - | 0.025 | - | - | - | - | - | - | - | - |
| max | 4.3 | 0.1 | 0.06 | 0.005 | 0.005 | 0.002 | 0.05 | 0.02 | 0.03 | - | - | |
| JIS H2201 (Ingot) | min | 3.9 | - | 0.03 | - | - | - | - | - | - | - | - |
| max | 4.3 | 0.03 | 0.06 | 0.003 | 0.002 | 0.001 | 0.075 | - | - | - | - | |
| JIS H5301 (Cast) | min | 3.5 | - | 0.02 | - | - | - | - | - | - | - | - |
| max | 4.3 | 0.25 | 0.06 | 0.005 | 0.004 | 0.003 | 0.01 | - | - | - | - | |
| AS1881 | min | 3.9 | - | 0.04 | - | - | - | - | - | - | - | - |
| max | 4.3 | 0.03 | 0.06 | 0.003 | 0.003 | 0.001 | 0.05 | - | 0.001 | 0.0005 | 0.001 | |
| GB8738-88 | min | 3.9 | - | 0.03 | - | - | - | - | - | - | - | - |
| max | 4.3 | 0.1 | 0.06 | 0.004 | 0.003 | 0.0015 | 0.035 | - | - | - | - | |
| †Impurity | ||||||||||||
Zamak 3 properties
| Property | Metric value | Imperial value |
| Mechanical properties | ||
| Ultimate tensile strength | 268 MPa | 38,900 psi |
| Yield strength (0.2% offset) | 208 MPa | 30,200 psi |
| Impact strength | 46 J (56 J aged) | 34 ft-lbf (41 ft-lbf aged) |
| Elongation at Fmax | 3% | |
| Elongation at fracture | 6.3% (16% aged) | |
| Shear strength | 214 MPa | 31,000 psi |
| Compressive yield strength | 414 MPa | 60,000 psi |
| Fatigue strength (reverse bending 5x108 cycles) | 48 MPa | 7,000 psi |
| Hardness | 97 Brinell | |
| Modulus of elasticity | 96 GPa | 14,000,000 psi |
| Physical properties | ||
| Solidification range (melting range) | 381—387 °C | 718—729 °F |
| Density | 6.7 g/cm3 | 0.24 lb/in3 |
| Coefficient of thermal expansion | 27.4 μm/m-°C | 15.2 μin/in-°F |
| Thermal conductivity | 113 W/mK | 784 BTU-in/hr-ft2-°F |
| Electrical resistivity | 6.37 μΩ-cm at 20 °C | 2.51 μΩ-in at 68 °F |
| Latent heat (heat of fusion) | 110 J/g | 4.7x10−5 BTU/lb |
| Specific heat capacity | 419 J/kg-°C | 0.100 BTU/lb-°F |
| Coefficient of friction | 0.07 | |
